Artificial GNNS Direction System
UAV GPS Superior Performance Solution for Module Tests
The MNT-AR-GNSS-V3 model is an artificial GNSS router, a super-performance tool designed to test GNSS devices faster and more efficiently.

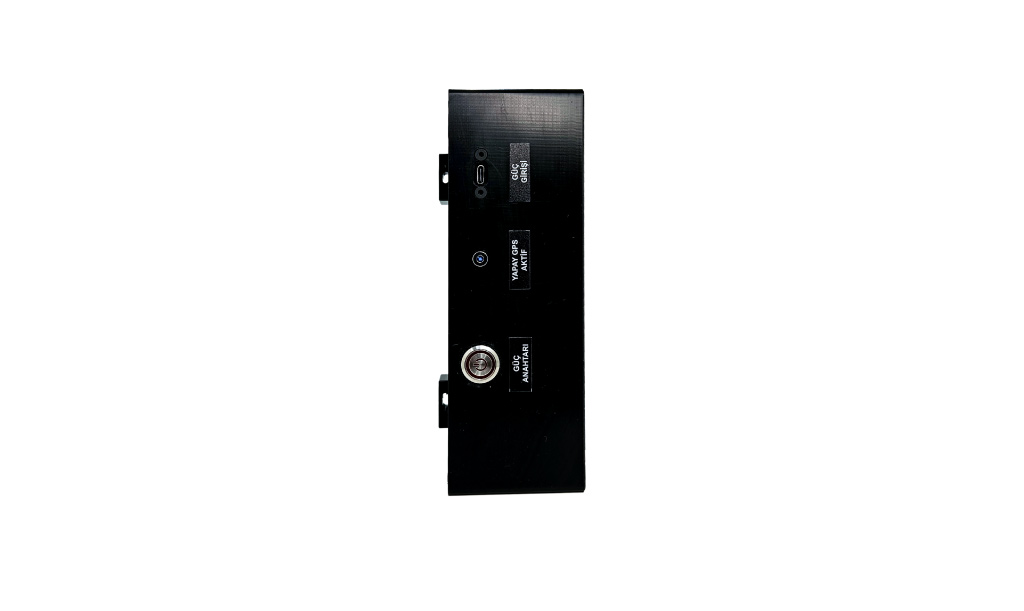

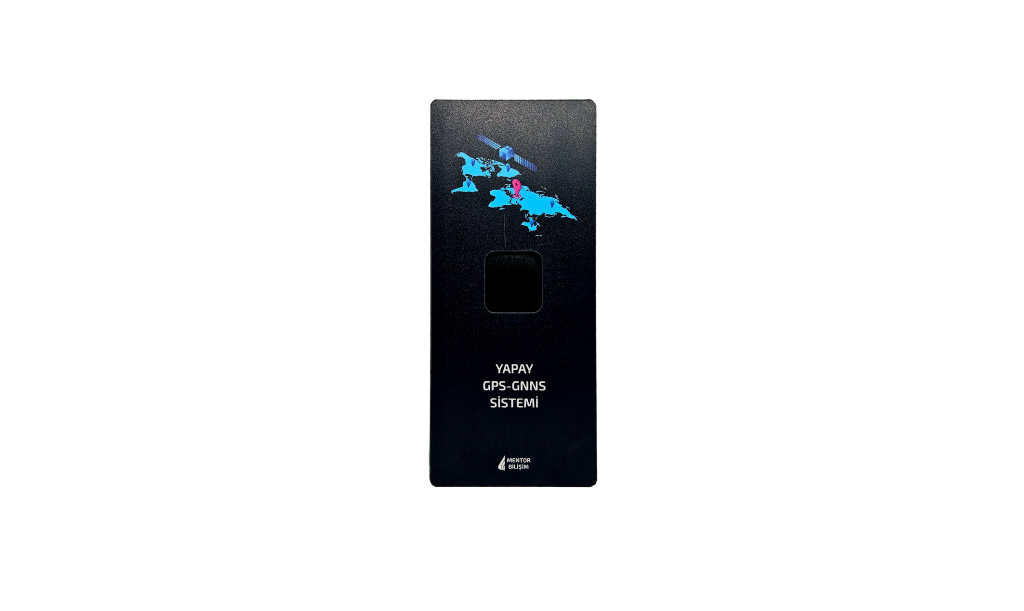

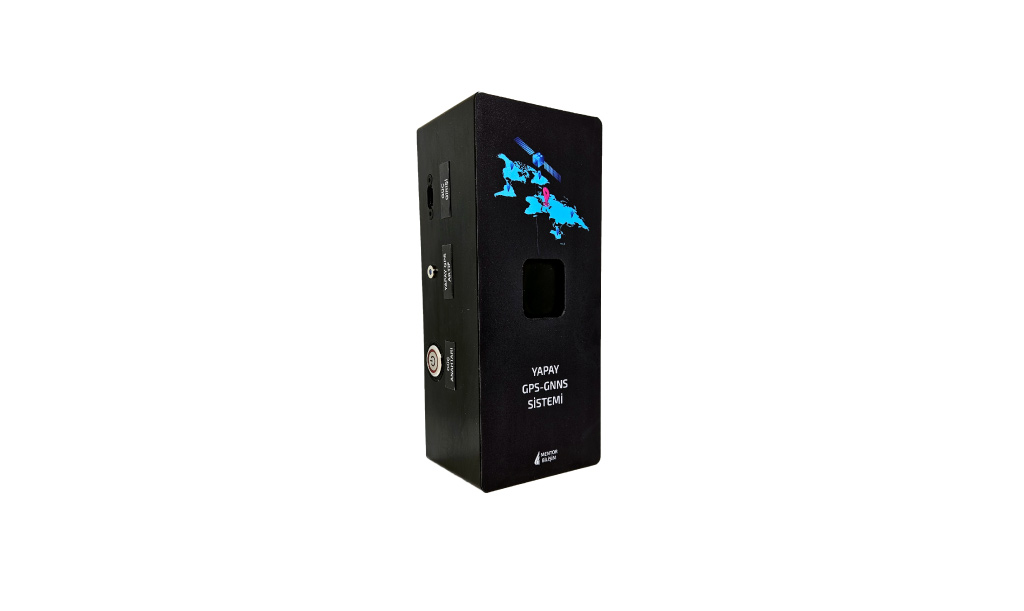

Product Visuals
Technical Properties
Technical Properties
| Model Code | MNT-AR-GNSS-V3 |
| Sizes | 200×80×65 mm (L×W×H) |
| Weight | 450 Gr |
| Working Temperature | - 10°C to 40°C |
| Color | Mate Black |
| Stabilization | Bilateral Stabilization / Unidirectional Use |
| The Need for Power | 5V 2A |
Connection and Interface
| Work Properties | Click and execute |
| Interface Konnector | Type-C Entry |
| Control Button | On-Off Button |
| Visual Warning | Stimulating LED |
| GNSS Support | GPS, GLONASS, Galileo |
| Sensitivity | ±1 meter |
| Test Signal | Multiple satellite simulations |
Artificial Intelligence Integration
| AI Support Test | Yeah. |
| Learning Algorithm | Adaptive Test Scripts |
| Optimization | Automatic calibration |
| Data Analysis | Instant Performance Report |
| Integration | API Support |
| Test Scripts | 20+ Prescription |
| Special Script | User Defined |
Performance Properties
| Test Time | Standard 5 min (Full Test) |
| Signal Power | Adjustable (160dBm minus 120dBm) |
| Satellite Number | Simulated up to 32 |
| Location Line | ·1 meters (Simulation) |
| Speed Simulation | 0-1000 km/h |
| Height Simulation | - 500 meters and 20,000 meters. |
| Multiple Tests | 4 devices at the same time |
Operational Advantages
Internal Environment Tests
The ability to perform GPS module tests in closed spaces. It eliminates dependency on external environment conditions.
- Controlled test environment
- Free of weather
- Use in a laboratory environment
Efficiency Test Processes
It reduces test times by 70%, increasing production line efficiency.
- Quick test cycle
- Auto-test scenarios
- Multiple simultaneous tests
High Sensitivity
It provides highly sensitive location data using GNSS technology.
- ±1 meter accuracy
- Multiple satellite imitations
- Realistic signal simulation
Artificial Intelligence Integration
By working integrating with artificial intelligence techniques, he creates intelligent test scenarios.
- Adaptive test scenarios
- Anomaly detection
- Automatic optimization
Independent of Magnetic Field
It provides a test environment that's not affected by magnetic fields.
- Testing in metallic environments
- EMI protected design
- Reliable results
Details Performance Analysis
The GNSS module analyzes its performance in detail.
- Extensive test report
- Weak spot analysis
- Performance improvement proposals
Scripts of Use
UAV Production Line Tests
Quick and reliable testing of GPS modules in drone production lines. Integrated flexible structure to the production process.
RD Labs
The ideal test environment to assess the performance of the GNSS recipients, recursive tests under controlled conditions.
Academic Studies
It's a test platform for studying GNSS technology at universities and research centers.
Get More Information
Contact us for technical details, a demo request, or a quote. Our expert team will get back to you as soon as possible.
Get in Touch
