Tablet Ground Control Station
Portable Tactical Command and Control Terminal
The tablet YKI is a mobile control station that can be carried and worn by a single person less than 3 kilograms. It provides a readable 10.1-inch solar screen, double-joystic modular control unit, internal battery and GNSS/LTE/Wi-Fi 6 links to isolated environments.

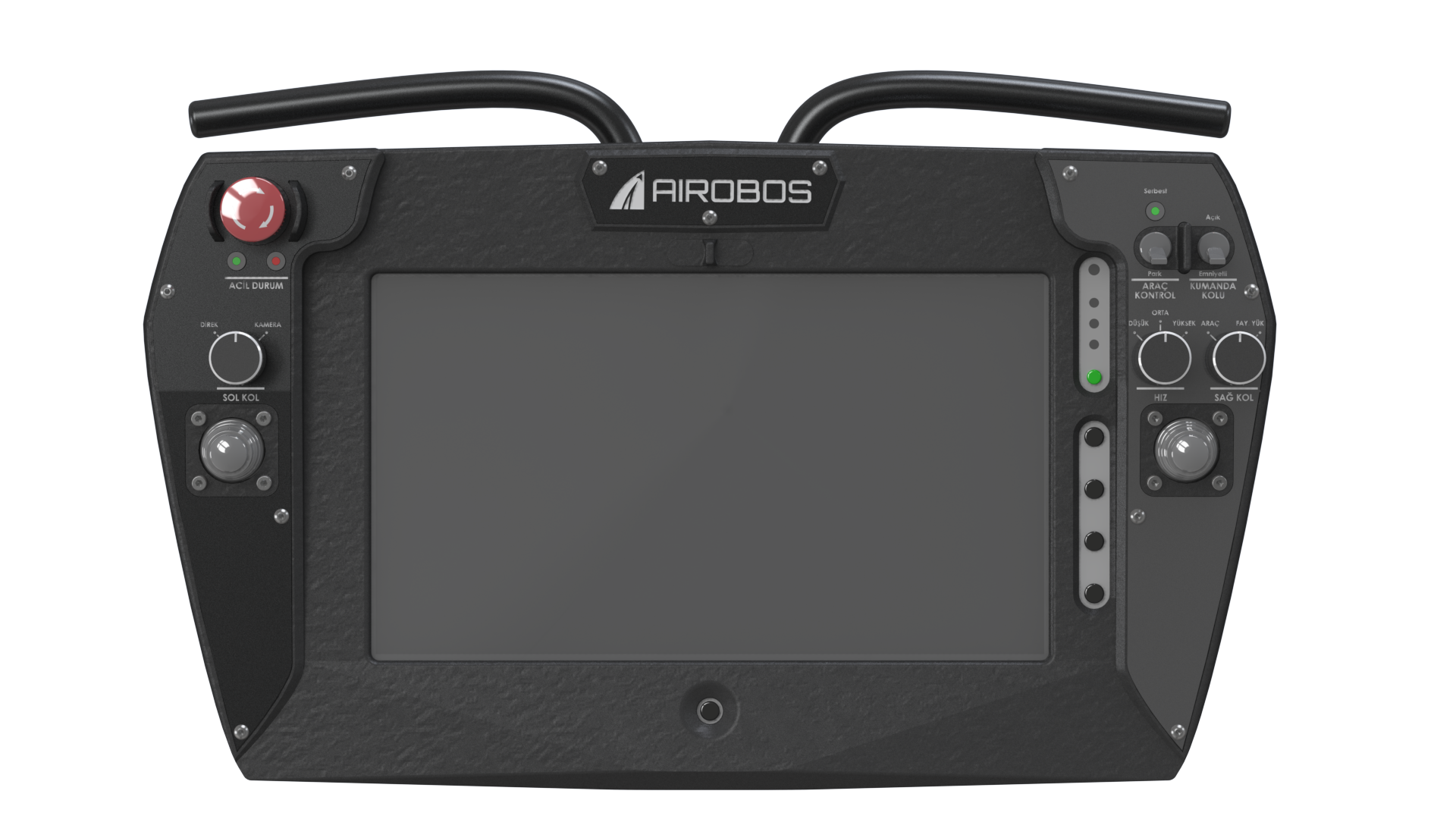

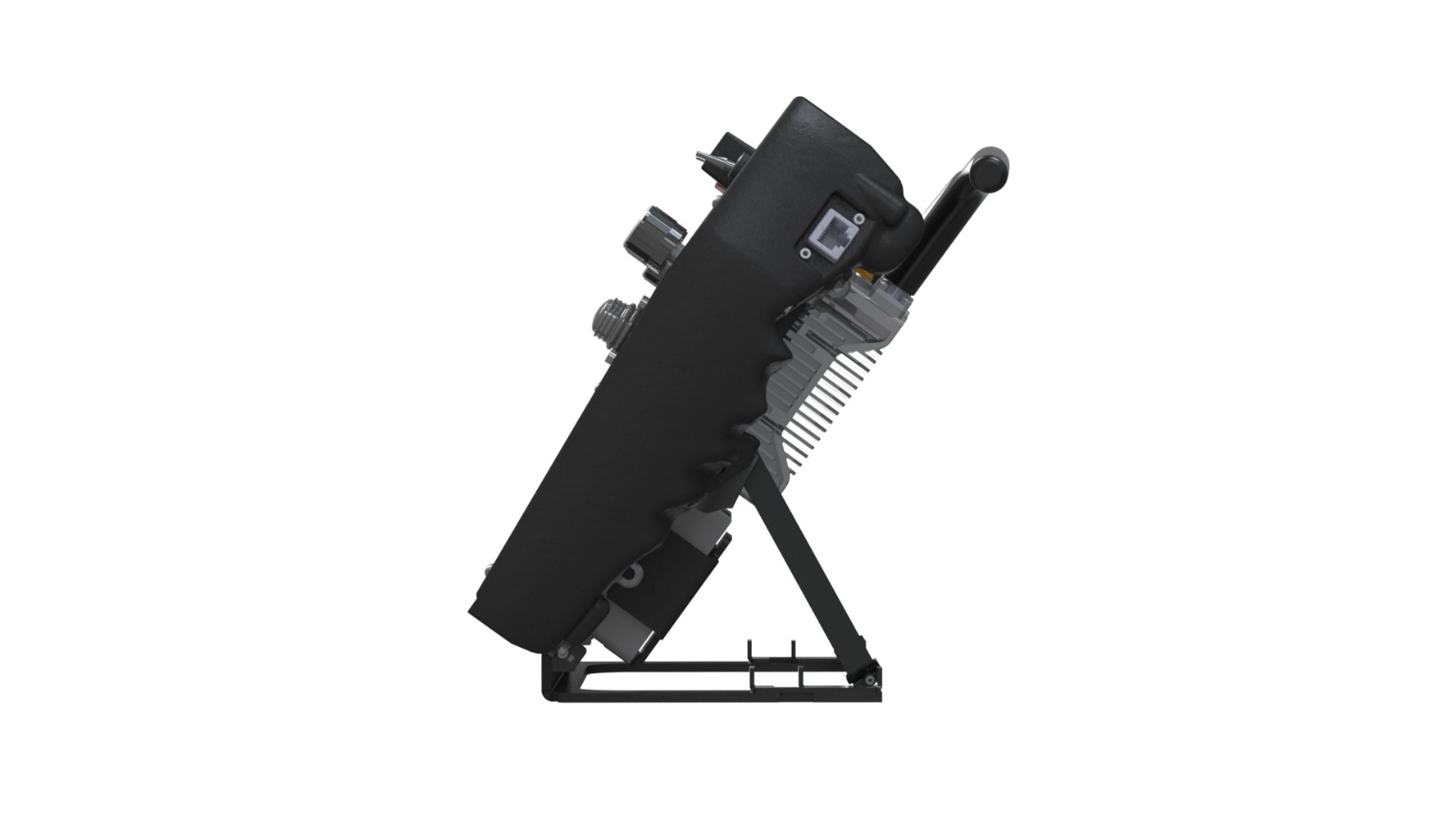

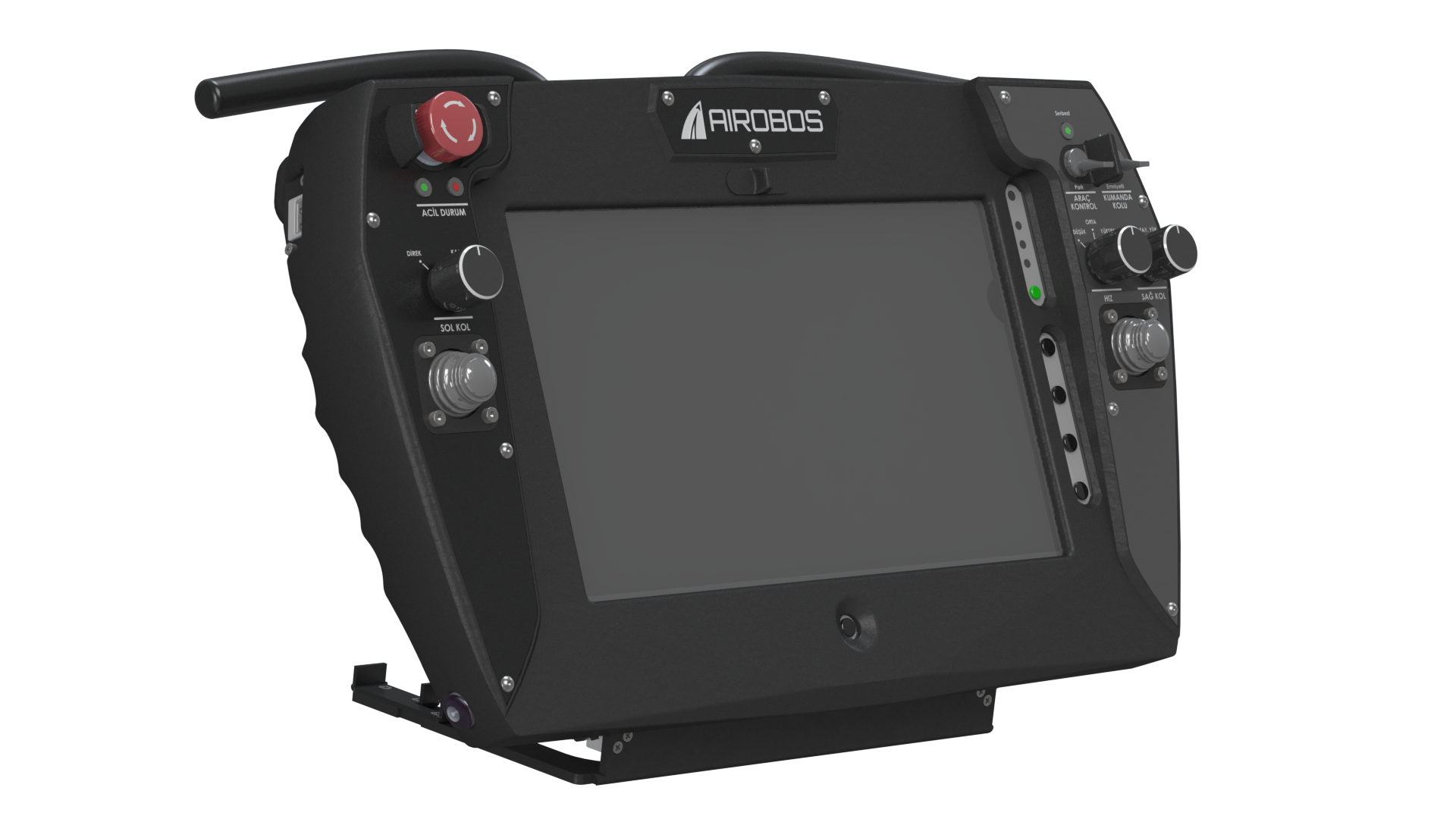

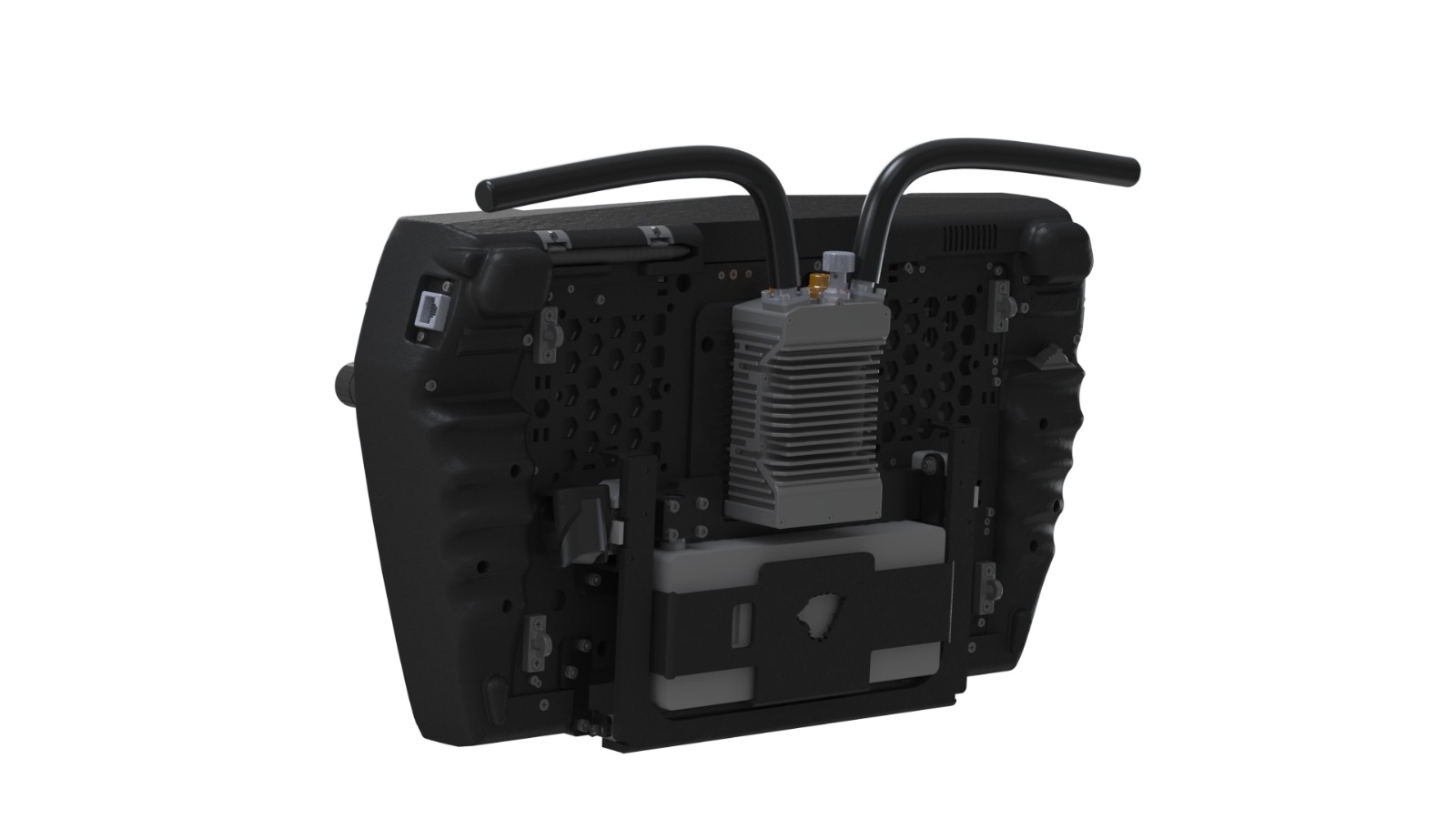

Product Visuals
Technical Properties
Screen & Visibility
| Screen Size | At least 10.1" touch panel |
| Resolution | 1920 × 1200 pixels (native) |
| Brightness | 800 ▪ 1,000 nits; for visibleness in the sun |
| Touch Technologies | PCAP multitouch |
| Stylus Support | Highly sensitive pen support (stylus) and stylus are provided together. |
| surface platings | Anti-reflective, anti-glare, anti-fingerprint (fingerprint blocker) |
| Drawing Resistance | Resistent protective layer (scratch-resistant) |
Portability and Ergonomy
| Maximum Weight | The total mass, including the carry bag, has been optimized to keep up to 3 kg. |
| Carrying Bag | It's not leaky, it's delivered with a diaper carrying bag. |
| Ergonomic Transport | The hanger system is designed to distribute weight to a balanced shoulder and back area. |
Equipment
| CPU (CPU) | Intel Core i5 13th Generation |
| Storage | ▪ 256 GB SSD |
| Sound System | Internal microphone and speaker |
| Supported Operating Systems | Windows 11 Pro (64-bit) and Ubuntu 24.04 LTS (64-bit) |
| Memory (RAM) | 8 GB DDR4 RAM |
Connection and Control interfaces
| Ethernet | 2× 10/100/100 Mbps Ethernet interface |
| USB | 1× USB 2.0 + 1× USB 3.0 |
| Physical Control Employees | 2 joysticks plus 5 buttons |
| Editing Structure | The joystick/buton module can be put on the tablet, installed and removed easily; the connection is cabled |
| Function Appointment | A task-based privatisation function can be assigned to joysticks and buttons |
| Power Feeding | The control unit's energy is provided through the tablet |
| GNSS | Integrated GNSS receiver + internal antenna; external antenna can be installed when needed |
| GSM/LTE | Internal low power consumption LTE/4G module + SIM card slot |
| Wi-Fi | Wi-Fi 6 support wireless connection module |
Operational Advantages
Light and Portable
A field-type control solution that is held at a total weight of 3 kilograms, comes with an unspoiled carry bag, and can be carried freely by the only staff.
- 3 kg total weight (including bag)
- Free use of hands with neck braces
- Quick deployment
Containable Control Unit
The ergonomic control module, which can be attached around the tablet, allows two joysticks and five buttons and one operator to establish full field control.
- 2 joystick + 5 button
- Wired, secure montage / unplug-tack
- Hanger ergonomia that reduces operator fatigue
Operation Free Field
The internal GNSS receiver, LTE/4G modem, Wi-Fi 6 and double Gigabit Ethernet, descend to minimum network dependency; it provides uninterrupted connections from closed space to open space.
- LTE/4G + SIM nest
- Wi-Fi 6 wireless access
- 2× 10/100/100 Mbps Ethernet
Read-in-the-Sun interface
It provides sensitive control, even in daylight, through the support of 10.1.20×1100 panels; 800 ×1000 nits brightness, anti-reflective/ anti-glare coating and stylus support.
- 800 Τ1000 nits glint
- Highly sensitive entry with stylus
- Anti-reflective / anti-glare surface
Strong and Modular
Drawing is a long-lived use of field conditions, thanks to the receding screen surface, the tac-out control module, and the non-release transport structure.
- Scratch-resistant protective layer
- The protective bag that won't leak
- Modular control unit
Software Flexibility
Joystick and button functions can be assigned according to the mission profile. With Windows 11 Pro and Ubuntu 24.04 LTS support, both tactical applications and analysis software can be run on the same platform.
- Task-specific button/joystick appointment
- Windows 11 Pro / Ubuntu 24.04 LTS
- Full control on single operator
Scripts of Use
Field Operation Control
A mobile control solution designed for the single operator to manage drone-free systems (IHA, land/sea platforms etc.) in the field. With a neck brace, the hands are free, the GNSS includes LTE/4G and Wi-Fi 6.
Maintenance/Repair Conditions
Service, maintenance and malfunction detection teams can cable the device (Ethernet/USB) in the field or wirelessly test for function through the joystick/buton interface. Modular control unit can be removed and attached to different tablets when needed.
RD and Flight/GNSS Tests
Since the GNSS receiver is integrated, GPS/GNSS module behavior can be measured in the field and indoors; the operator can quickly apply different test scenarios and collect the data. It acts as a portable test station for R&G teams during the development of new platforms.
