Air Data Measurement Station
Advanced Meteorological Measurement Solution for UAV Subsystems
The MNT-GCS-HVOS-V3 Field Data Measurement and Watch Station is a highly functional product that gives the user momentary measurement of weather conditions through its advanced technology.

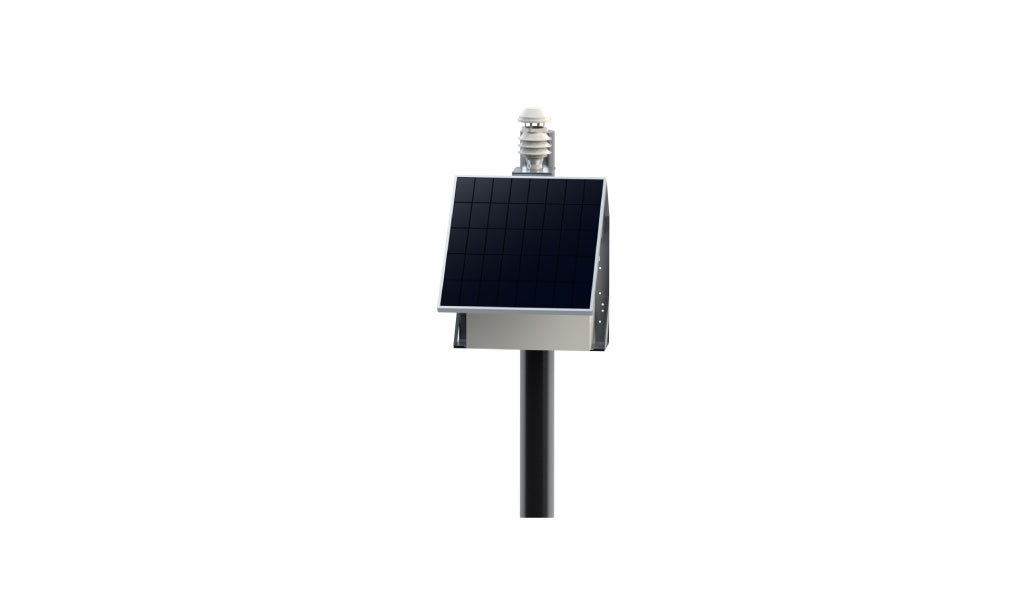

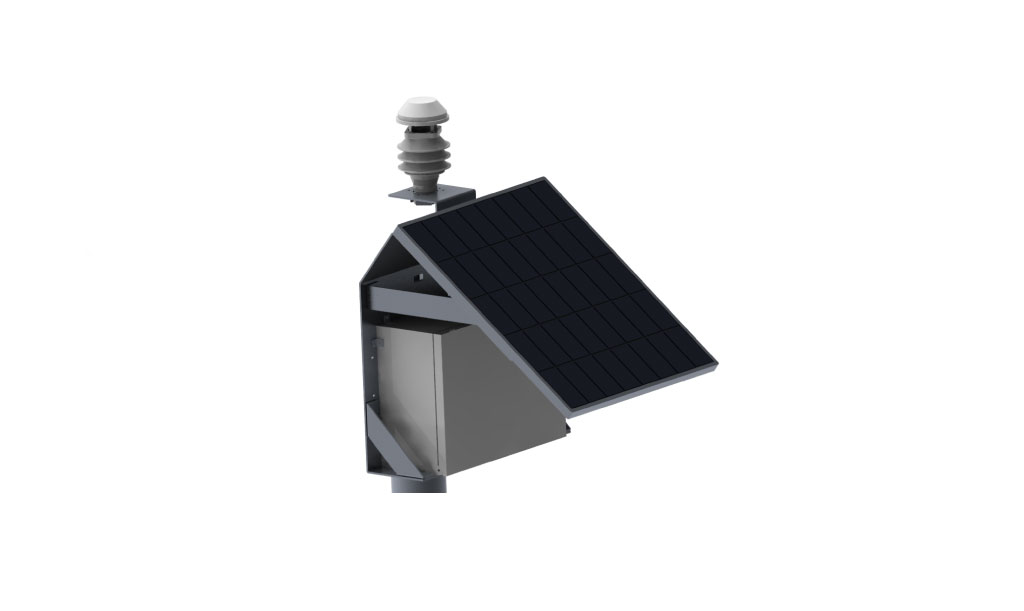

Product Visuals
Technical Properties
Technical Properties
| Model Code | MNT-GCS-HVOS-V3 |
| Sizes | 495×630×750 mm (L×W×H) |
| Weight | 21.6 kg |
| Working Temperature | - 20°C to 60°C |
| Color | Natural aluminum |
| Stabilization | Direct Editing Tools |
| The Need for Power | Solar Energy |
Metric Skills
| Wind Speed Range | 0-70 m/s |
| Wind Velocity | ±3% |
| Wind Direction Range | 0-359° |
| Wind Direction Truth | < 3° |
| Temperature Range | - 40°C to 80°C |
| Temperature Honesty | ±0.5°C |
| Moisture Range | 0-100% RH |
Metric Skills
| Moisturity | ±2% |
| Pressure Range | 150-1100 hPa |
| Pressure Honesty | ±1 hPa |
| Rain Range | 0-500 mm/sa |
| Rain Truth | ±10% |
| Data Communication | Mobile Application & Web Site |
| Running Time | Uninterrupted until 12 days |
Data Communication and Software
| Data Transfer | Real-time |
| Distance Range | 10 km (open space) |
| Data Hide | Local and Cloud |
| Mobile Application | iOS and Android |
| Web Interface | Responsive Design |
| Data Formats | CSV, JSON, XML |
| API Support | Yeah. |
Operational Advantages
Uninterrupted Energy
By working with solar power, it provides uninterrupted service even in areas without electrical infrastructure.
- Battery life up to 12 days.
- Highly efficient solar panel
- Low energy consumption
Remote Tracking
Mobile application and web interfaces and real-time data tracking from all over the world.
- Instant data imaging
- Historical data analysis
- Multiple devices support
Stable Design
Aluminum hull and protected electronic design, resistant to difficult weather conditions.
- IP66 water and dustproof
- UV-resistant material
- Resistant from corrosion
Detailed Analysis
By analyzing the collected data in detail, it presents user-friendly reports.
- Customable reports
- Trend analysis
- Data export options
Smart Warnings
When the specified thresholds are breached, it sends an immediate notification.
- SMS and email notification
- Mobile Push notifications
- Customable warnings
Easy Installation
It's a quick and smooth installation through user-friendly design.
- Manual editing
- Wireless connection
- Automatic calibration
Scripts of Use
UAV Operations
It provides critical weather information for drones' safe flight, increasing flight security with wind speed, direction and other meteorological data.
Agricultural Applications
It supports sensitive agricultural practices by collecting micro-conditioning data in agricultural areas, providing ideal data for irrigation timing and exterminating.
Industrial Facility
It monitors environmental conditions in factories and power plants, providing critical data for wind turbines and solar systems.
Get More Information
Contact us for technical details, a demo request, or a quote. Our expert team will get back to you as soon as possible.
