GCS Mentor Single Screen V2
MNT-GCS-SC1-V2 - Mobile Ground Control Station
MNT-GCS-SC1-V2 is a mobile ground control station designed to carry out tactical surveillance and reconnaissance missions. It provides an ideal solution to field operations with compact design and high performance.

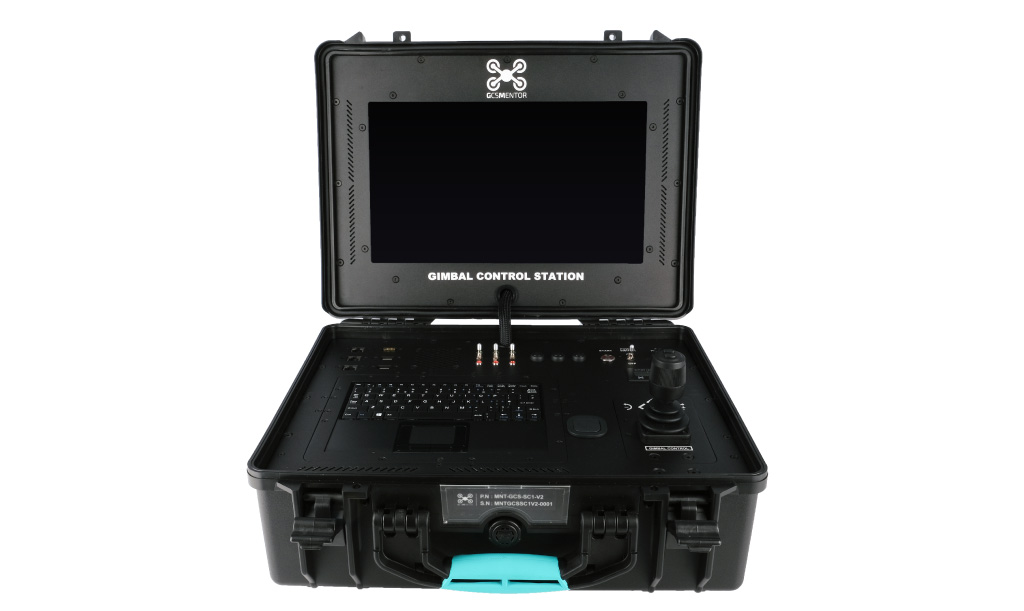

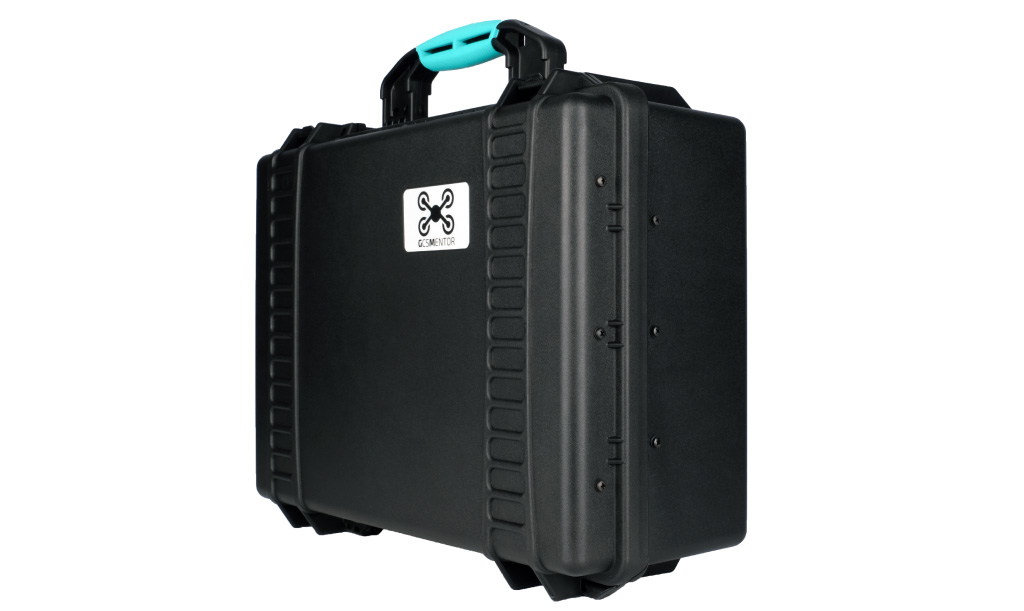

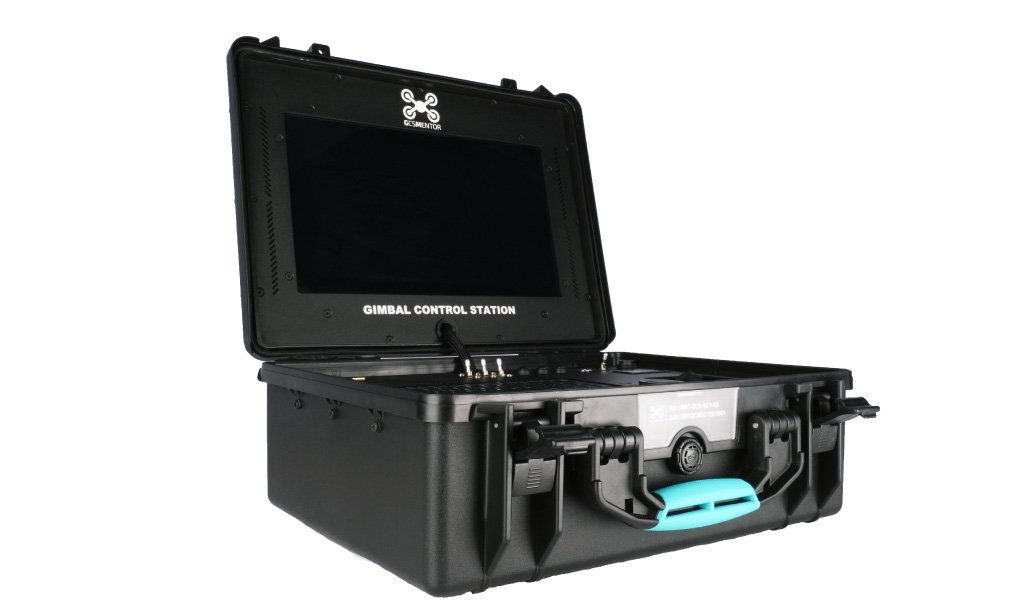

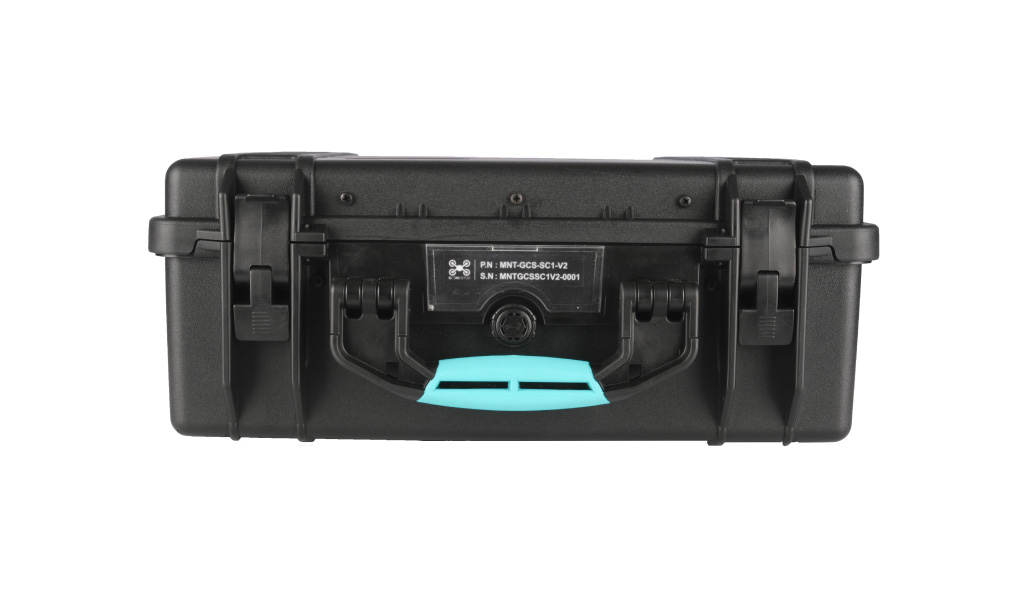

Product Visuals
Technical Properties
Physical Properties
| Dimensions (closed) | 478.1 x 389.4 x 194 mm (L×W×H) |
| Dimensions (Open) | 490 x 390 x 480 mm (L×W×H) |
| Weight | 7.500 Gr |
| Working Temperature | - 10°C to 50°C |
| Protection Level | IP64 |
| Color | Mat Black (Privable) |
| Work Panel | 3mm aluminum Sac |
| Paint Type | Eloxal Containment |
Connections and Interfaces
| USB Ports | USB2.0 x 1, USB3.0 x 1 |
| Network Connection | RJ45 ETH (1Gbit) x3 |
| Video Exit | HDMI x1 |
| Control Employees | 3 Axis Joystick |
| Keys | Push Button x 3, TOGGLE SWITCH (Safety) x3 |
| Battery Life | 6-8 Hours |
| Portability | Unidirectional Conservative Support |
| Security | Overflow/Hotness/Voltage Protection |
Computer and Screen
| CPU | Intel I5 10400T |
| RAM | 16 GB |
| Storage | 1TB SSD |
| Operating System | Windows 10 Professional 64Bit |
| Screen Size | 16 "Touch Screen |
| Resolution | Full HD |
| Reaction Time | 60 Hz 8ms |
| Other Equipments | Keyboard, Touchpad, Cooling Fan |
Skills and Properties
| Control Skills | UAV Gimbal Control; Task Planning; Real-time data analysis |
| Operational | Mission Control; Log Analysis; Data Recording and Reporting |
| Security | Data Decrypt; Physical Lock; Authority Management |
| Other Properties | Battery Voltage Indicator; Speaker; Industrial Cooling Fan |
Operational Advantages
Portable Tactical Station
Get out of the vehicle, open the hatch, start the mission, a compact ground control station that can be deployed quickly with the only operator.
- 75 kg class lightweight structure ί can be moved with only one person
- A portable form factor in the boot / land vehicle
- Within minutes, it'll be working in the field.
Field Resilience
Physical protection, environmental stability and credibility-oriented design for a non-interruption mission under military and industrial conditions.
- Protection at IP64
- - 10°C to 50°C working temperature
- Mechanical impact resistance with aluminum hull + eloxal plating
Mission Control From One Point
The vehicle, gimbal, mission plan and telemetry are directed from a single terminal, reducing the field crew's coordination load.
- Sensitive control with 3 axis joysticks
- Real-time video plus telemetry on the same screen
- Mission planning, log analysis and reporting in one system
Scripts of Use
Tactical Reconnaissance
Use it as a mobile recon unit for military and security operations...
Professional Films
Drone and camera control on film and ads...
Maping Studies
Mobile control center for mapping and land measurement studies...
