GCS Mentor Single Screen V1
Mobile Ground Control Station
MNT-GCS-SC1-V1 is a mobile ground control station designed to carry out tactical surveillance and reconnaissance missions. It offers all the needs for drone control, gymbal management and mission planning on a single screen.

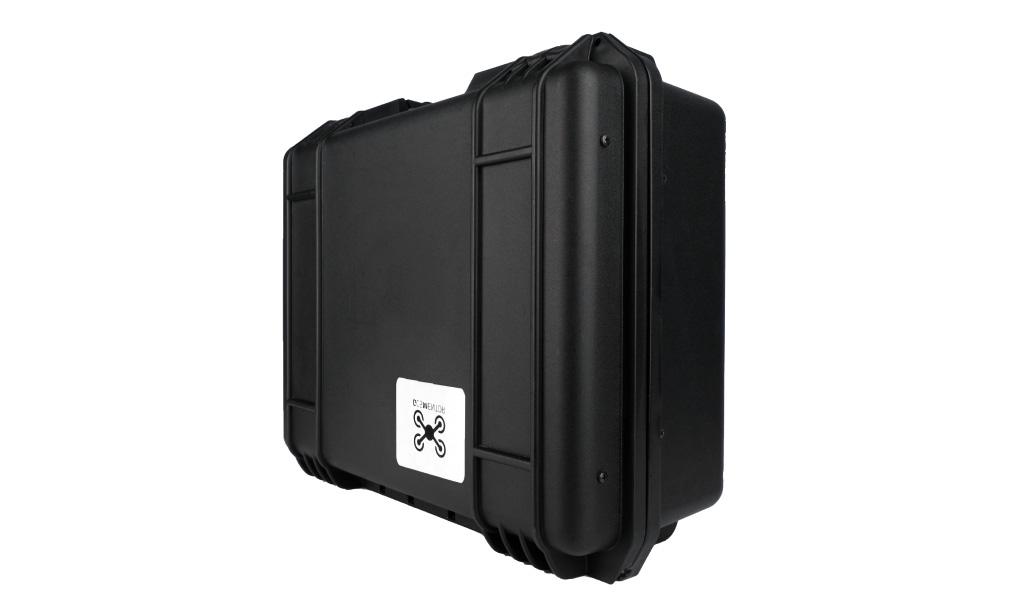

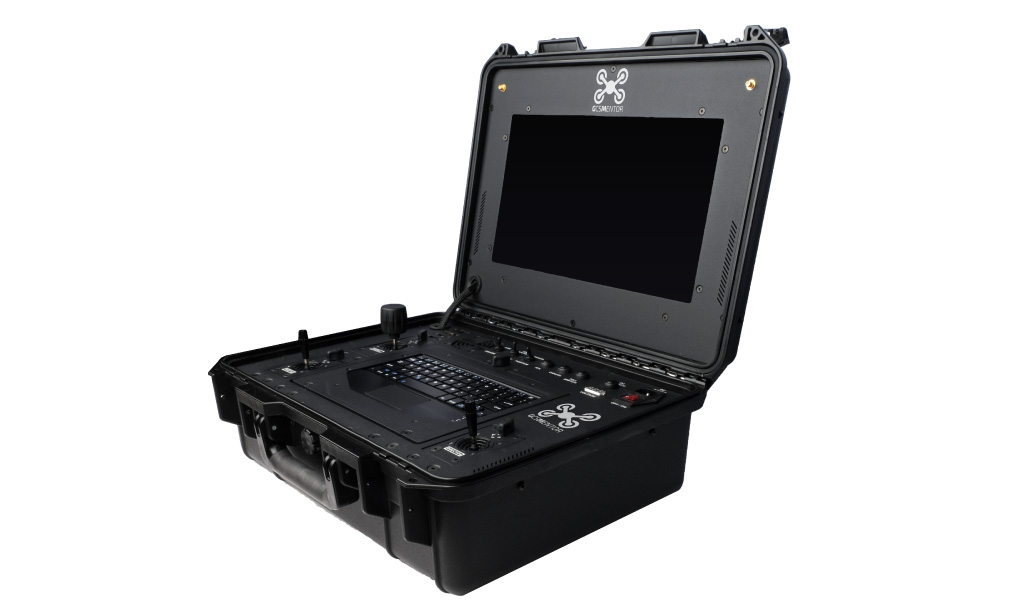

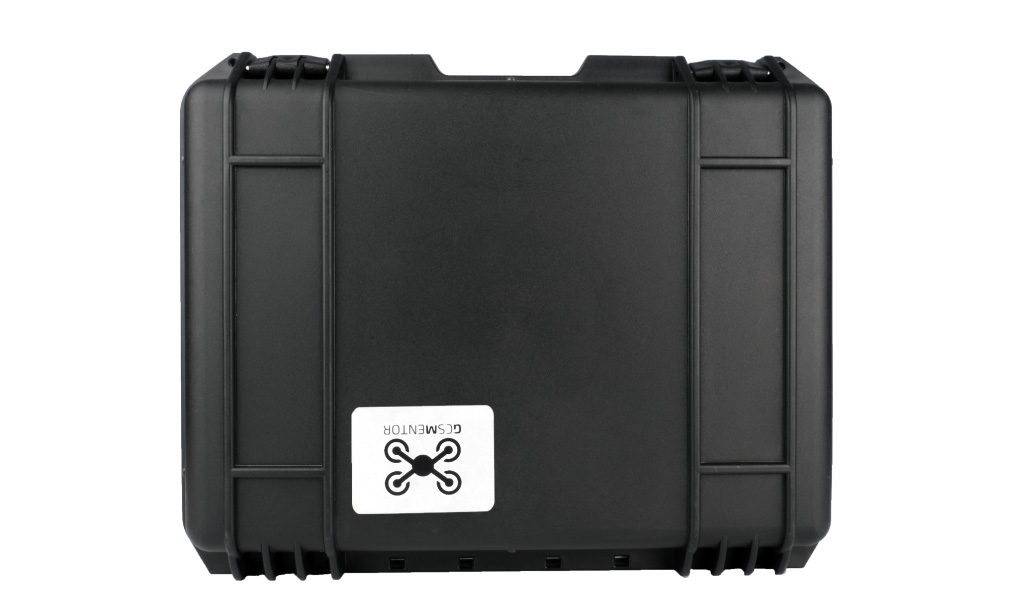

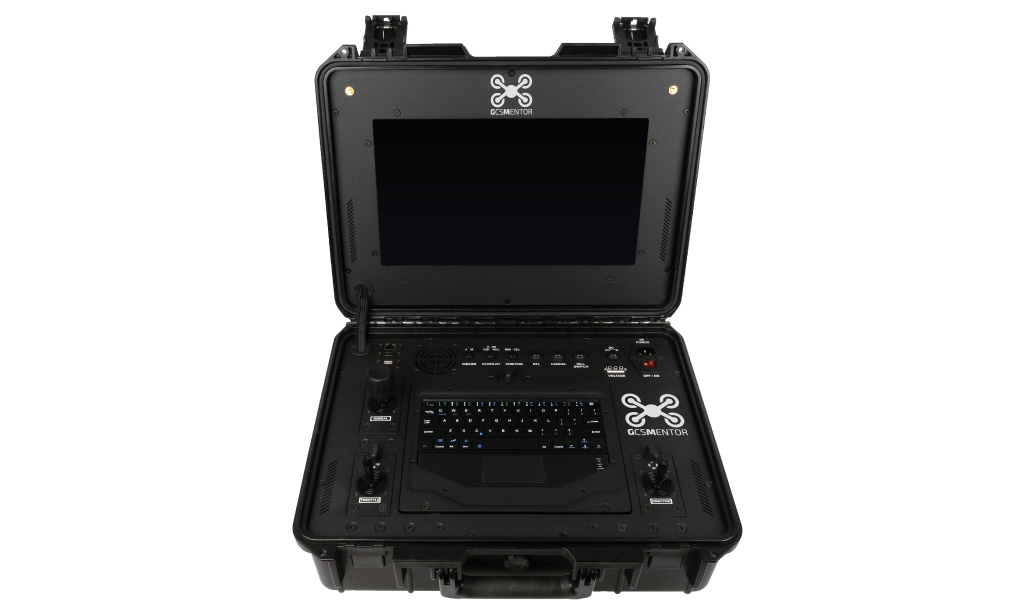

Product Visuals
Technical Properties
Physical Properties
| Model Code | MNT-GCS-SC1-V1 |
| Dimensions (Closed) | 490×390×193 mm (L×W×H) |
| Dimensions (Close Open) | 490×390×520 mm (L×W×H) |
| Weight | 5.500 Gr |
| Working Temperature | - 10°C to 50°C |
| Protection Level | IP64 |
| Color Type | Mat Black (Privable) |
System Properties
| Control Computer Processor | Intel i5 CPU |
| Control Computer Memory | 16 GB RAM |
| Control Computer Storage | 1TB SSD |
| Operating System | Windows 10 Professional 64Bit |
| Screen Size | 16 "Touch Screen |
| Screen Resolution | Full HD |
| Reaction Time | 60 Hz 8ms |
| Battery Life | 6 Hours of Pil Life |
Connections and Interfaces
| USB 2.0 | 2 Periods |
| USB 3.0 | 1 Period |
| RJ45 ETH (1 Gbit) | 2 Periods |
| HDMI | 1 Period |
| SMA | 2 Periods |
Control Employees
| 3 Axis Joystick | 2 Periods |
| Push Button | 3 Periods |
| Toggle Switch (Safety) | 3 Periods |
Other Properties
| Security | Overflow/ Overheat / Overvoltage / Low Voltage Protection |
| Structural Properties | 3mm Aluminum Sac Work Panel; Eloksal Covering; Derlin, Aluminum and Steel Support Parts; One-director Support |
| Other Equipments | Industrial Cooling Fan; Keyboard and Touchpad; Battery Voltage Indicator; Speaker |
Operational Advantages
UAV Control
Control and control of multiple drone systems from one station, real-time monitoring and control of flight parameters.
- Multiple drone management
- Flight parameter check
- Real-time telemetry
UAV Gimbal Control
Precision control of drone gimbal systems, camera angles, zoom and other sensors.
- axisd gimbal control
- Camera parameter settings
- Sensor management
Task Planning
To create detailed mission planning and automatic flight routes. Dotting on the map and creating mission scenarios.
- Automatic course planning
- Map integration
- Multiple mission scenarios
Mission Control
Real-time monitoring and management of missions, emergency response protocols and decommissioning properties.
- Real-time mission tracking
- Emergency management
- Abortion and continuation
Log Analysis
Recording and analysis of flight data, evaluation and reporting performance metrics.
- Save data
- Performance analysis
- Customable reports
Mobile Solution
Easy use in the field with mobile and rapid installation properties, hard environmental conditions-resistant design.
- Quick installation
- Portable design
- Resilience to difficult circumstances
