GCS Mentor Mini Screen
Compact and Portable Location Control Station

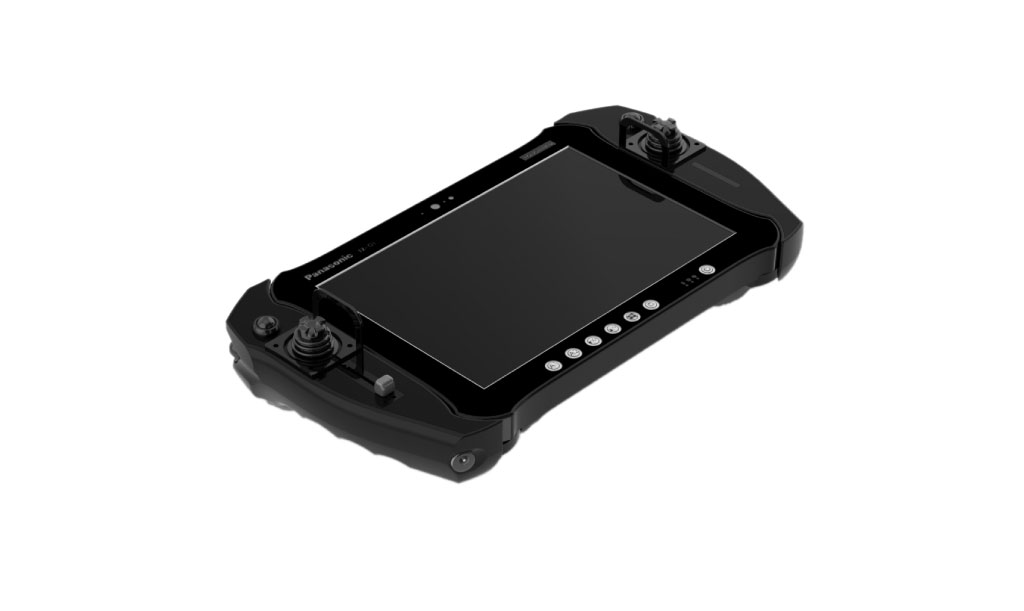

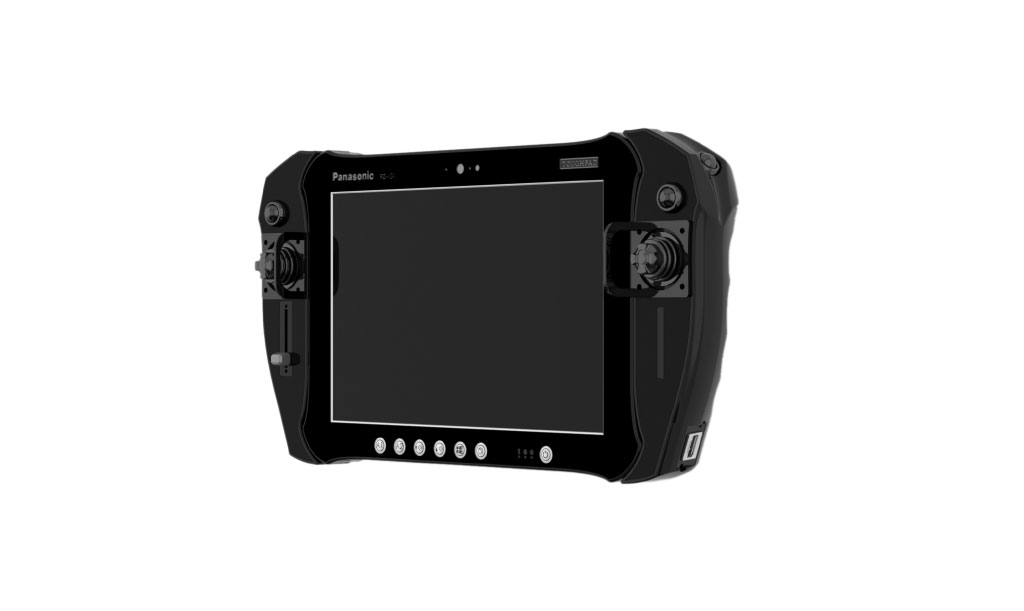

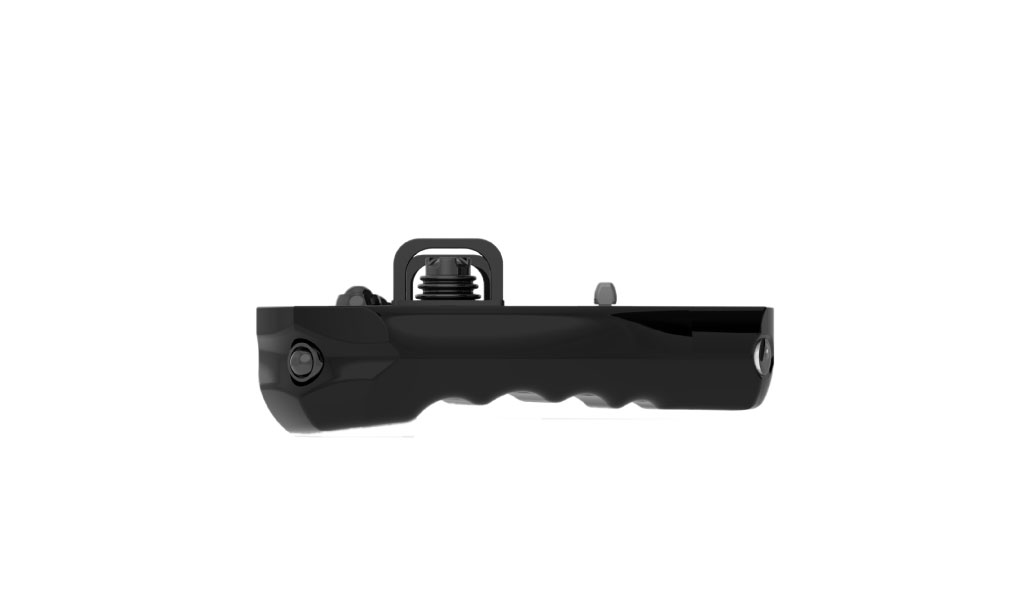

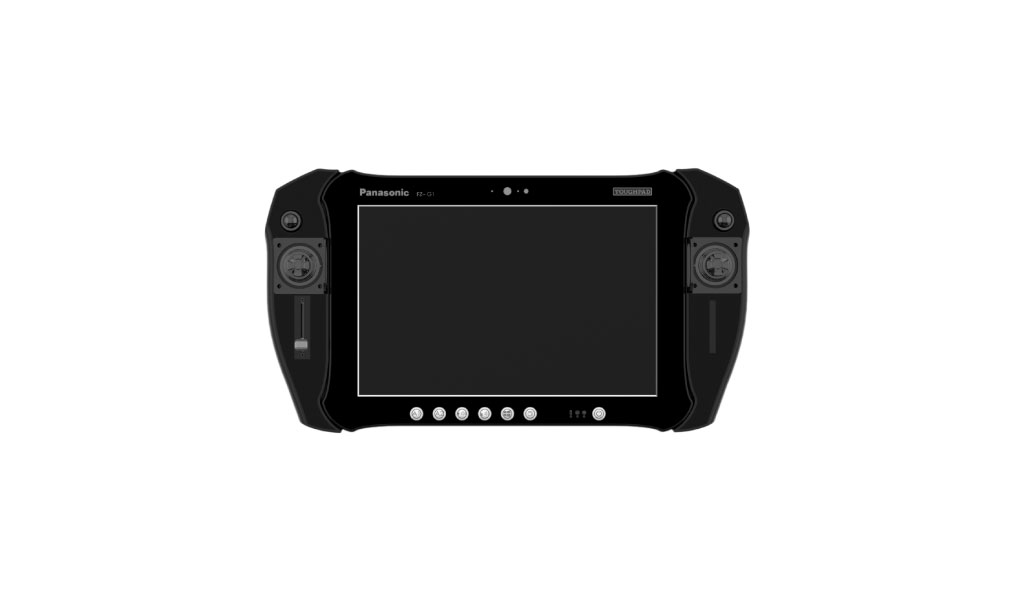

The MNT-GCS-MN-V2 Mini Ground Control Station offers operators a comfortable and portable control experience by minimizing weight with the rugged tablet-based compact design.
Product Visuals
Technical Properties
Tablet Properties
| Model Code | MNT-GCS-MN-V2 |
| Screen Size | 10.1" Rugged Touch |
| Resolution | 1920×1200 Full HD |
| CPU | Octa-Core 2.0GHz |
| Memory | 8GB RAM |
| Storage | 128GB (Unable) |
| Battery Life | 8-10 Hours |
Persistence Properties
| The Guard was Standard. | IP65 |
| Working Temperature | - 20°C plus 60°C. |
| Impact Resilience | A 1.2m high fall from concrete. |
| Dustlessness | MIL-STD-810G |
| Waterlessness | 30 minutes at 1m depth |
| Vibration Persistence | MIL-STD-810G |
| Weight | 1.8 kg (including Tablet) |
Connection Properties
| Wi-Fi | 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 |
| GPS | GLONASS, Galileo, BeiDou |
| USB | Type-C 3.1 (2) |
| HDMI Exit | Micro HDMI |
| SIM Card | Nano SIM (4G LTE) |
| RF Connection | 2.4GHz/5.8GHz Dual Band |
Control Employees
| Joystick | 2 Axis (2) |
| Buttons | 6 Programmable Button |
| Security Key | 2 Periods Toggle Switch |
| Touching surface | Multiple Touch Support |
| Ergonomic Design | Fitting Human Hand Anatomy |
| Control Software | ALROBOS Control Suite |
| Operating System | Android 12 / Windows 11 SE |
Operational Advantages
Light and Portable
It's easy to move in the field with only 1.8kg of weight, even in narrow spaces, thanks to compact design.
- 1.8kg light design
- Single hand use
- Quick installation
Resistant From Hard Conditions
Reliable performance in difficult environments, in accordance with MIL-STD-810G standards.
- IP65 protection
- - 20°C to +60°C
- Impact and vibrations persevering
Ergonomic Design
It's comfortable even in long-term use with design consistent with human hand anatomy.
- Anatomynic grip
- Balanced weight distribution
- Anti-slide surface
Fast and Strong
With a high-performance processor and a long battery life, it's an uninterrupted operation.
- Octa-Core 2.0GHz
- 8GB RAM
- Eight to ten hours of battery life.
Extensive Link
Integration with multiple connection options with different platforms.
- Dual Band RF
- 4G LTE
- Multiple GPS support
Multiple Platform Support
Multiple platform control, consistent with drones, drones, and IDA systems.
- UAV control
- IKA check
- IDA check
Scripts of Use
Exploration and Surveillance
The ideal solution for mobile surveillance and exploration in military and security operations, which can be easily moved and quickly deployed by operators through its light structure.
Industrial Applications
Portable control solution for oil pipelines, power transfer lines and industrial facilities control.
Emergency Management
In cases of fire, flood, and other natural disasters, mobile control is possible for rapid response teams, which can work in difficult conditions with water and dust-resistant structure.
Get More Information
Contact us for technical details, a demo request, or a quote. Our expert team will get back to you as soon as possible.
Get in Touch
