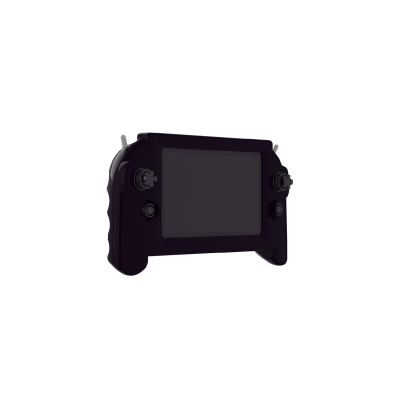

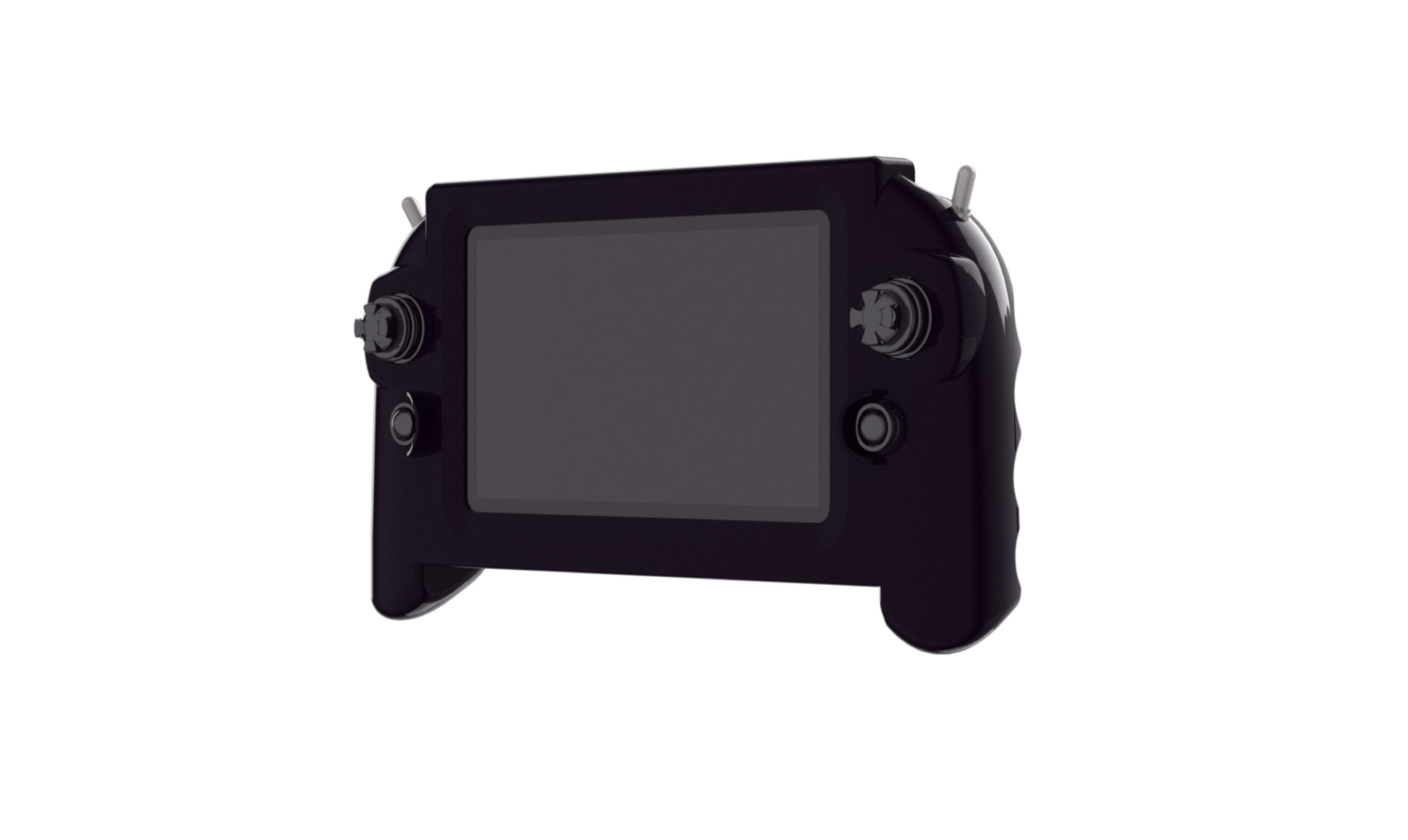

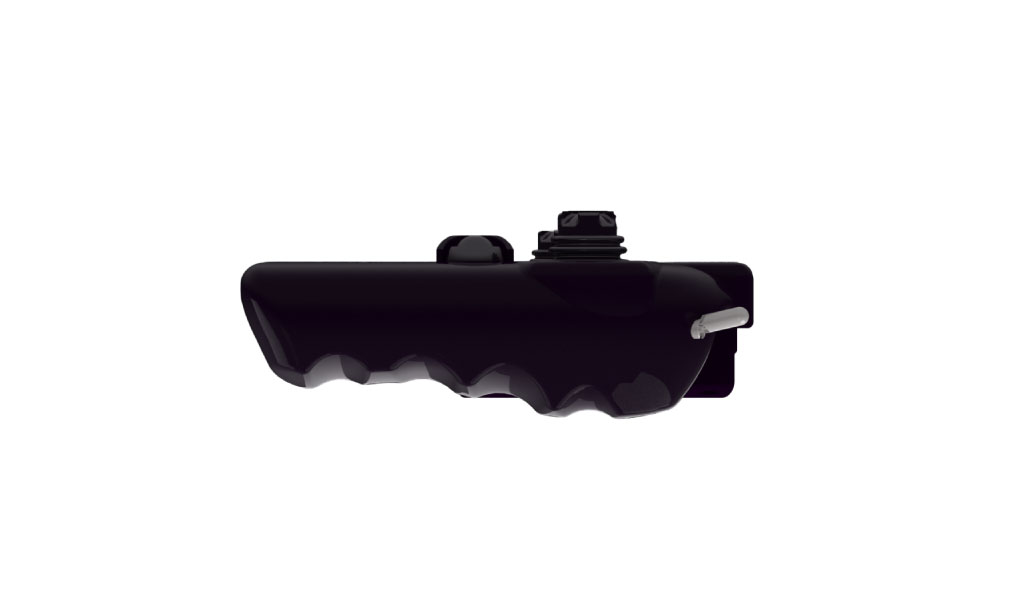

GCS Mentor Micro Screen
Compact and Portable MicroSite Control Station
The MNT-GCS-MC-V1 model Micro Ground Control Station is a product that provides fast action and transport for operations in the field with a 7-inch touch screen and only 1kg weight.
Product Visuals
Technical Properties
Screen Properties
| Model Code | MNT-GCS-MC-V1 |
| Screen Size | 7" Touch Screen |
| Resolution | 1280×800 HD |
| CPU | Quad-Core 1.8GHz |
| Memory | 4GB RAM |
| Storage | 64GB (Unable) |
| Battery Life | 6-8 Hours (changeable) |
Physical Properties
| Weight | 1.0 kg |
| Sizes | 190×120×30 mm |
| The Guard was Standard. | IP54 |
| Working Temperature | -10°C plus 50°C |
| Battery Type | Removable Li-Po |
| Charge Time | 2 Hours (Fast Charge) |
| Control Employees | 2 Joysticks, 4 Buttons |
Connection Properties
| Wi-Fi | 802.11 b/g/n/ac |
| Bluetooth | 4.2 |
| GPS | GLONASS, Galileo |
| USB | Type-C 2.0 |
| HDMI Exit | Micro HDMI |
| SIM Card | Nano SIM (4G LTE) |
| RF Connection | 2.4GHz |
Control Properties
| Joystick | 2 Axis (2) |
| Buttons | 4 Programmable Button |
| Touching surface | Multiple Touch Support |
| Control Software | ALROBOS Control Lite |
| Operating System | Android 11 |
| Compatibility | UAV, drone, IDA |
| Control Distance | 5km (Open Area) |
Operational Advantages
Ultra Light
It's the lightest ground control station with only a kilo of weight, and even in long-term use, the operator minimizes fatigue.
- 1kg light design
- Single hand use
- Instant use
Modible Battery
It's an uninterrupted operation with a battery system that can be charged and replaced quickly.
- 6-8 hours battery life
- Fast charge (2 hours)
- Backup battery support
Ergonomic Design
It's one-handed use with design the size to fit in the palm.
- 190×120×30 mm size
- Anti-slide surface
- Single hand use
Quick Reaction Time
An immediate response to a low-distant control system.
- <50ms delay
- Quad-Core processor
- Software to our optimum
Extensive Link
Integration with multiple connection options with different platforms.
- 2.4GHz RF
- 4G LTE
- Double-band GPS
Multiple Platform Support
Multiple platform control, consistent with drones, drones, and IDA systems.
- UAV control
- IKA check
- IDA check
Scripts of Use
Quick Exploration and Surveillance
Quick deployable surveillance solution for special operations teams, easily transported and ready for immediate use by operators due to its light structure.
Emergency Response
Fire, flood, and in other emergencies, immediate control of the rapid response teams, long operational periods with a replaceable battery.
Industrial Control
The ideal control solution for small spaces and industrial controls that require mobile work, easy use in difficult industrial environments with the size of compact.
Get More Information
Contact us for technical details, a demo request, or a quote. Our expert team will get back to you as soon as possible.
