GCS Mentor Double Screen
MNT-GCS-SC2-V3 - Double Screen Ground Control Station
GCS Mentor Double Screen is a solution to the flexible and stable control of drones, land and sea vehicles. This station, which can work independently of the network link, offers broad privatisation opportunities with its modular structure.

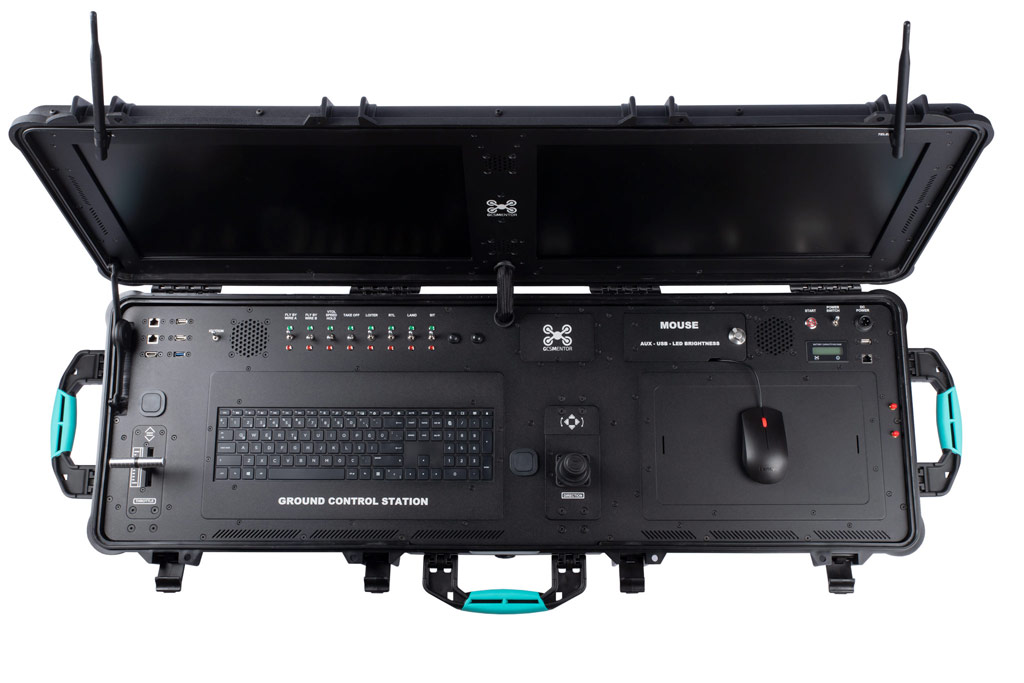

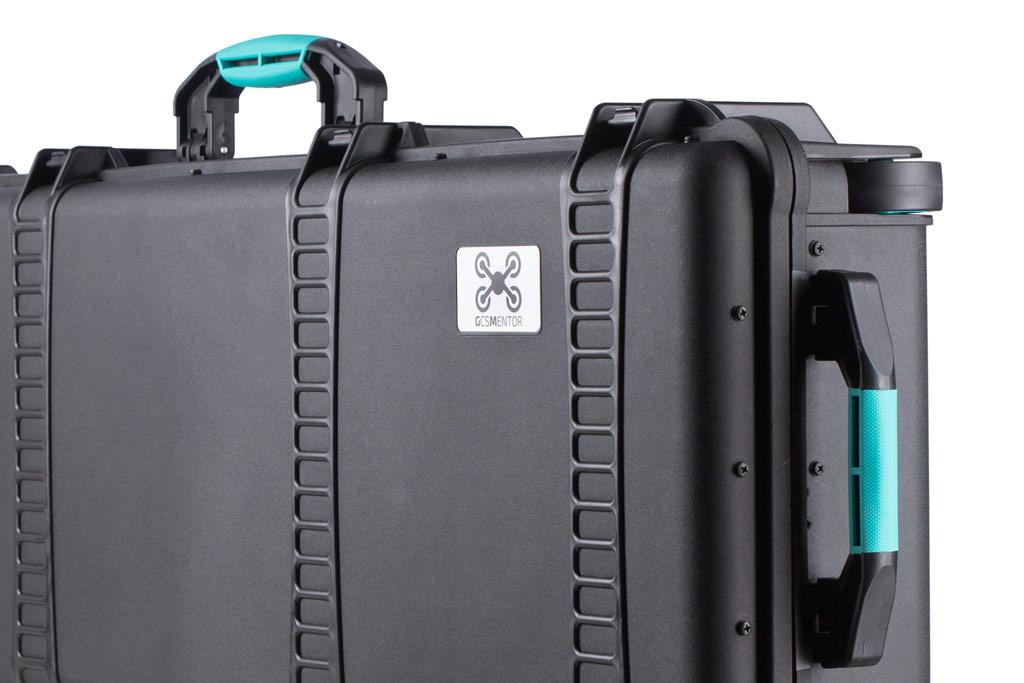

Product Visuals
Technical Properties
Physical Properties
| Dimensions (Open) | 1230 x 560 x 1200 mm (L×W×H) |
| Dimensions (closed) | 1175 x 410 x 265 mm (L×W×H) |
| Weight | 38 kg |
| Working Temperature | - 10°C to 50°C |
| Protection Level | IP64, MIL-STD-810 516.6 Processure IV |
| Color | Mat Black (Privable) |
| Work Panel | 3mm aluminum Sac |
| Portability | Internal Wheels, 3 Reservative Support |
Connections and Interfaces
| USB Ports | USB2.0 x 4, USB3.0 x 1, Type-C x 1 |
| Network Connection | RJ45 ETH (1 Gbit) x3 |
| Video Exit | HDMI x1 |
| Other Ports | AUX x 1, SMA x 4 |

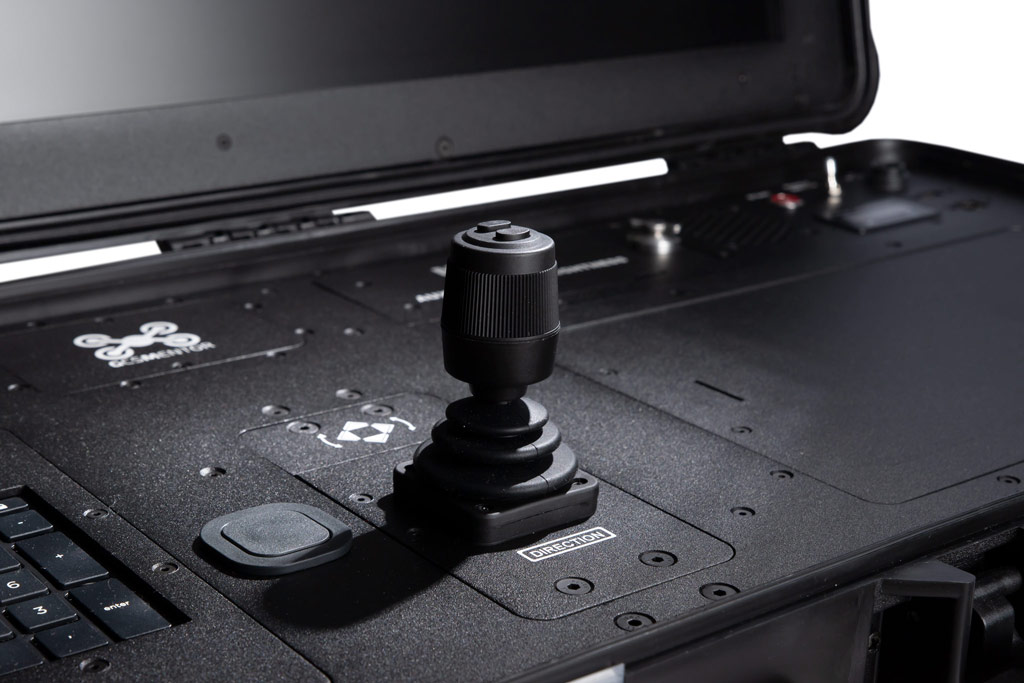

| Control Employees | T-bar Throttle Joystick, 3 Axis Joystick |
| Keys | Push Button x 2, Toggle Switch (Safety) x 11 |
| Battery Life | 8 - 12 Hours |
| Security | Overflow / Temperature / Voltage Protection |
Computer and Screen
| CPU | Intel i7 / i5 / i3 |
| RAM | 3 / 16 / 8 / 4 GB |
| Storage | 1TB / 512GB / 256GB SSD |
| Operating System | Licensed Windows / Ubuntu 20.04 LTS |
| Screen Size | 21.5" Double Screen |
| Resolution | Full HD |
| Brightness | 1000 nits |
| Reaction Time | 60 Hz 5ms |
Skills and Properties
| Operational Skills | Mission control, log analysis, multiple vehicle management |
| Privatisation Flexibility | Equipment configuration, software privatisation, interface design |
| Use Area | UAV command-control, field operations, publishing and emergency coordination |
Operational Advantages
UAV Operations
Command control center for military and civilian drone operations, cross-referencing data analysis and control with a double screen.
- Real-time image processing
- Multiple drone management
- Map & sensor integration
Moving Publishing
Drone and gimbal control in professional video shots, clear view in the open with high brightness screens.
- Live broadcast control
- Camera parameter setting
- Stage transition management
Search and Rescue
Central control unit for emergency operations, reliable performance in the field with a hard-to-resistant structure.
- Thermal image analysis
- Team coordination
- Operational records
Get More Information
Contact us for technical details, a demo request, or a quote. Our expert team will get back to you as soon as possible.
Get in Touch
